Conception et personnalisation
- Share CAD or a sample bottle (Bordeaux, Burgundy, Champagne or bespoke). We’ll map punt, shoulder and neck to build a protective contour.

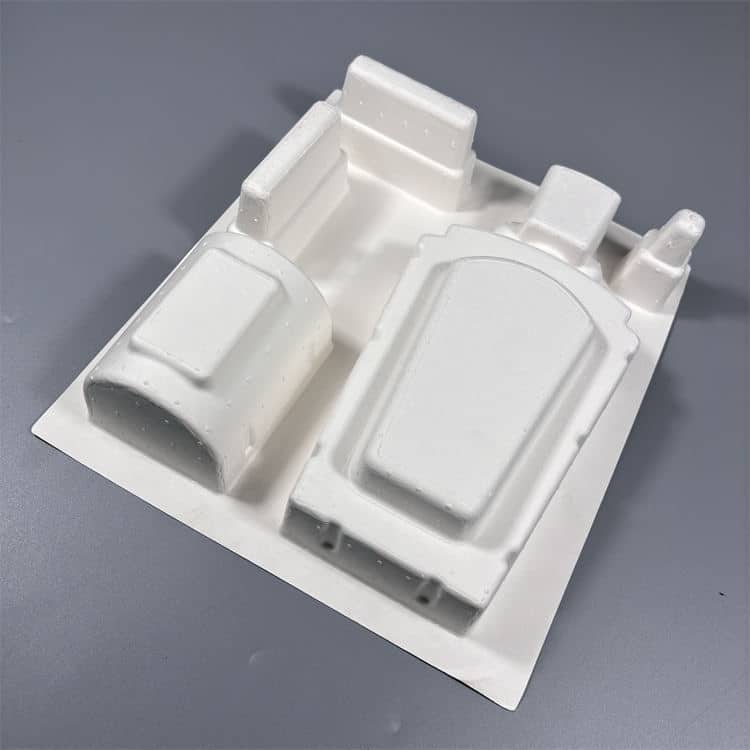

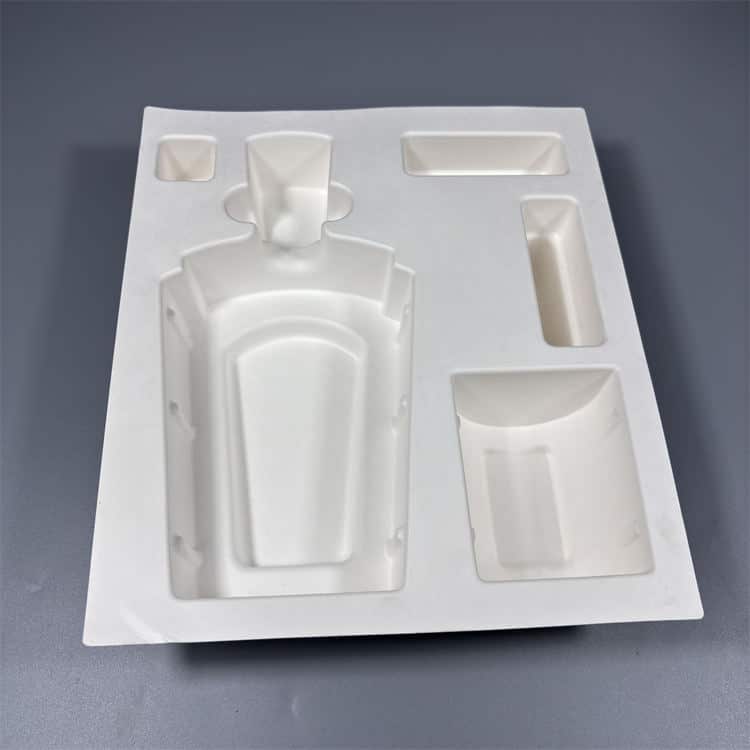

- Options: cross‑braces, heel blocks, cork/stopper pocket, card recess, finger‑notches for easy lift. Multi‑bottle layouts and double‑layer sets available.
- Finish in natural white or colored fiber to match your label palette. Add embossed brand marks or icons molded into the tray.
Performances et essais
- Typical wall thickness 1.2–2.5 mm depending on bottle mass and route.
- Geometry tuned for e‑commerce: anti‑shear ribs, reinforced corners and neck clamps.
- We provide guidance for ISTA‑style drop, vibration and compression tests and can adjust ribs or thickness to meet targets.
Durabilité et conformité
- Fiber sourced from recycled paper and agricultural by‑products; FSC option on request.
- Water‑based pigments maintain recyclability while offering Pantone color match.
- Mono‑material solution simplifies consumer recycling and reduces plastic use.
Échantillonnage et délais
- DFM review and drawings in a few days.
- Sample mold and first articles in about 10 days.
- Mass production typically 15–25 days after approval; MOQ 5000 pcs per design/color.
Emballage et livraison
- Plateaux empilés dans des cartons de base ; palettes optimisées pour l'exportation.
- Conditions d'expédition EXW/FOB/CIF avec documentation complète.
Services côte à côte
- Moule public : empreintes standard pour un échantillonnage plus rapide et des coûts d'outillage réduits.
- Packaging Solutions: tray + outer carton development, fit checks and transit testing.
- 3D Design: CAD/DFM support with quick 3D previews.
- Moule personnalisé : outillage privé, fibre Pantone, marquage en relief/débossage.
FAQ
Q1: Can you match our bottle profile exactly?
A: Yes. Provide CAD or a sample bottle and we’ll design precise neck/shoulder/base support for a no‑rattle fit.
Q2: Can we include accessories in the same insert?
A: Absolutely. We can add cavities for openers, stoppers, leaflets or glassware and balance the layout for presentation.
Q3: Are the inserts suitable for e‑commerce shipping?
A: With the right ribs and thickness, wet‑press trays pass typical drop and compression tests for wine logistics.
Q4: What colors and branding are available?
A: Natural white/kraft/black or any Pantone. Embossed/debossed logos and functional icons can be molded in.
Q5: What is the MOQ and timing?
R : MOQ 5000 pcs. Échantillons dans un délai d'environ 10 jours ; production dans un délai de 15 à 25 jours après approbation.
Q6: Are the trays recyclable and biodegradable?
A: Yes. They are paper‑fiber based, widely recyclable and biodegradable under proper conditions.
Prêt à donner une nouvelle dimension à vos emballages de vin ?
Share bottle size or CAD, box dimensions, color and logo. We’ll design the cavity, sample fast and deliver on time with BonitoPak PM‑036.
